CT 600 MX

products / OPTIMISING CROSSCUT SAW FOR ANGLED CUTTING play video

Product Description

CROSSCUT SAW WITH AUTOMATIC PUSH-FEED FOR ANGLED CUT
OPTIMISED CUTTING

The CT600 MX is a crosscut saw with automatic push-feed with complete optimisation and defection of the boards.
Thanks to its rotating table, it is the optimal solution for all straight (90°) and angular (+/- 70°) cutting for both
single board and stack sawing.
The new push-feed profile slides on a linear guideway and ball bearings. Rack and pinion feed system and brushless motor
to ensure maximum cutting precision. Thrust capacity of a board or stacked material upto 250 kg.
The software architecture relies on a Beckhoff electronic control with a 12" high-resolution touch-screen monitor,
simple and intuitive 3D graphic interface with Windows operating system.
Cutting lists can be created directly on the on-board software or imported via connection to Ethernet or USB network ports.
The software allows the cutting list to be automatically optimised to reduce waste and optimise the machining process
according to 4 criteria: maximum length, minimum waste, sequence and priority.
A photocell allows automatic measurement of the workpiece to be cut (OPTI function).
A second photocell detects fluorescent marks to eliminate knots and defects (OPTI PLUS function).
Possibility of integrating label and ink-jet printers into the cutting line.
Automatic loading and sorting units can be implemented on request.
All in all, it is the perfect machine for the most demanding customers, flexible but with high production capacity.
It is the reference for manufacturers of special packaging, wooden floors, wooden houses (Truss and Frame Walls)
construction formwork and interior and exterior furnishings.


Cut-off saw technical data

Blade diameter
600 mm

Blade rotation speed
2600 rpm

Blade motor power
kW 7,5 (HP 10)
Automatic table rotation
70°  0°  +70° (+/- 80° option)

Minimum cutting section
30 (L) x 10 (H) mm

Maximum cutting capacity at 0° (straight cut)
410 mm (L) at 40 mm (H) - 215 mm (L) at 200 mm (H)

Maximum cutting capacity at 45° (angled cut)
285 mm (L) at 40 mm (H) - 150 mm (L) at 200 mm (H)

Maximum cutting capacity at 70° (angled cut)
80 mm (L) at 40 mm (H) - 40 mm (L) at 200 mm (H)

Maximum operating pressure
6 bar

Extraction outlets
3 x Ø100 mm - 1 x Ø120 mm

Net weight
1200 kg



Push-feed technical data

Load capacity
from 3000 upto 14000 mm

Max speed
120 mt / min

Max positioning speed
120 mt / min
Max return speed
120 mt / min

Positioning accuracy
+/- 0,4 mm

Max boards weight
250 kg

Cutting execution cycle
4 sec

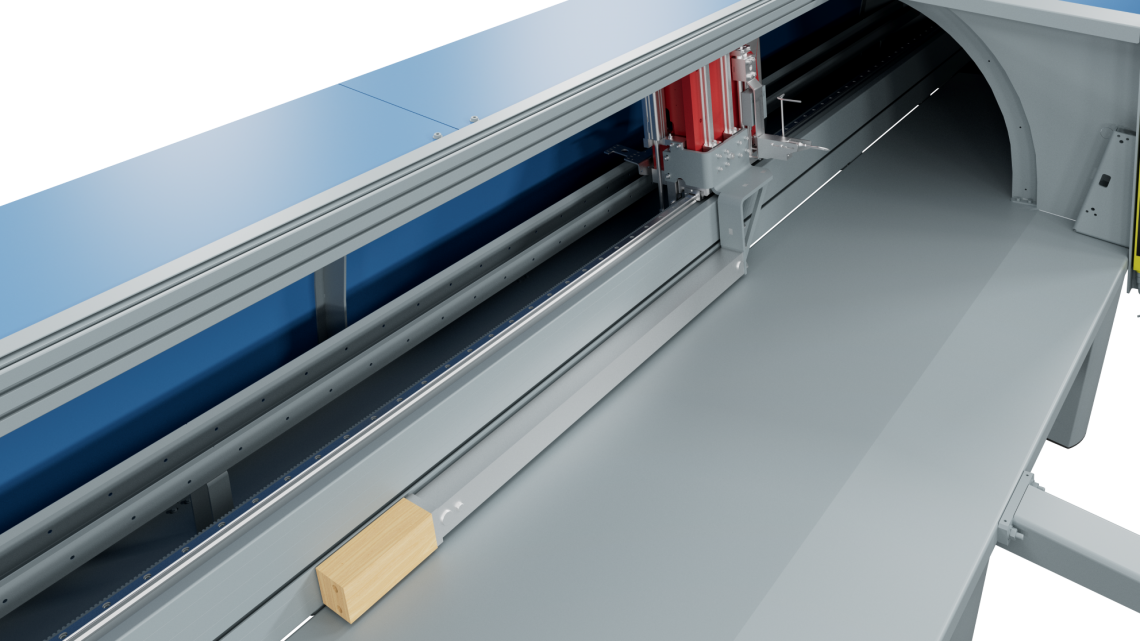

ELECTRONIC PUSH-FEED

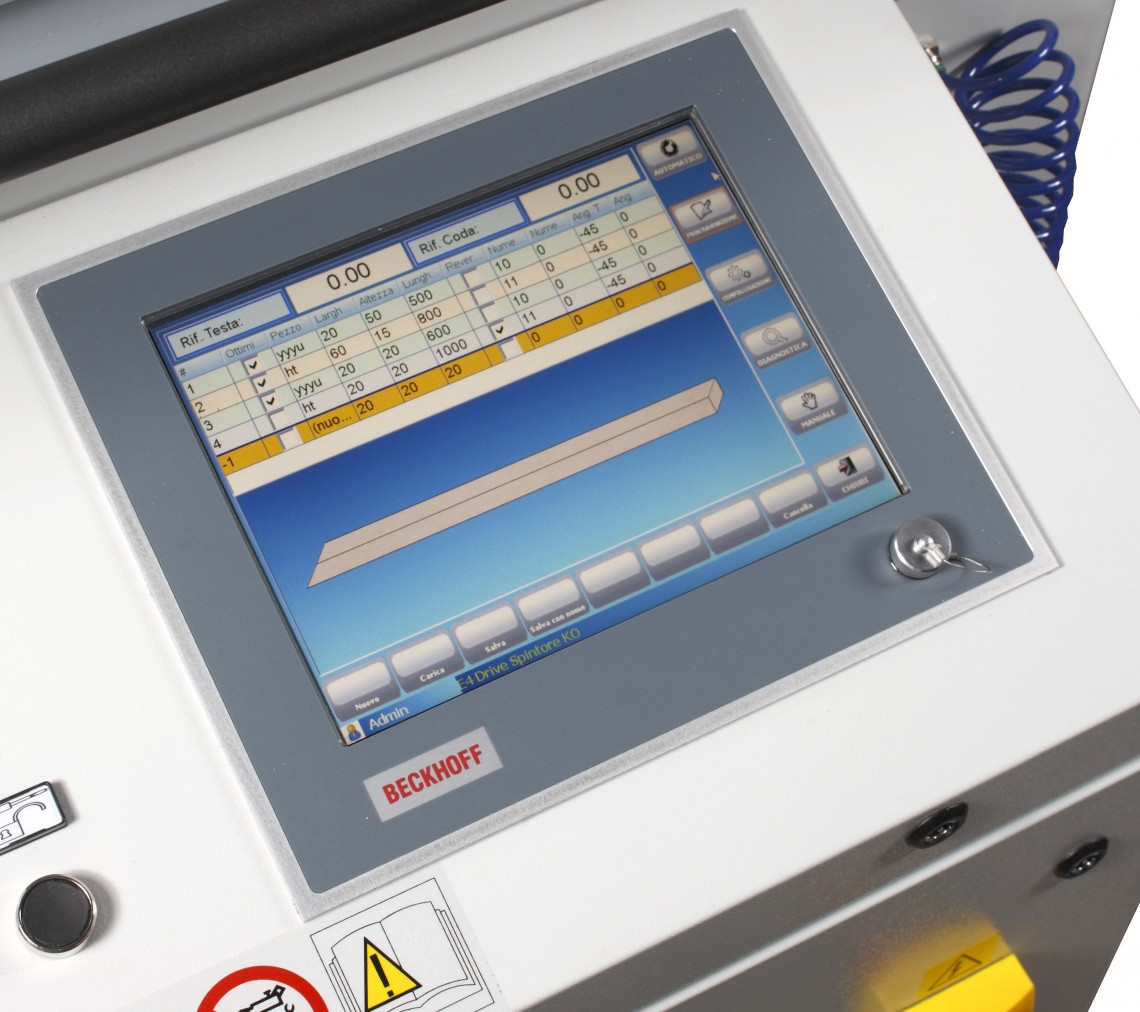

ELECTRONIC CONTROL BECKHOFF
