TR 600

products / CROSSCUT SAW WITH ASCENDING BLADE

Product Description

CUT OFF SAWS WITH ASCENDING BLADE

CLASSIC TOOLS FOR SAWING

TR600 is a cut off saw that was born out to meet the crosscutting needs of large industries.
Thanks to its robustness, a hydraulic saw unit drive with bimanual hand-saving control
to a motor power of 9 kW and a 600 mm diameter blade it can cut up to 160 mm thick and 610 mm wide.
Possibility of integrating the STROMAB STOP automatic measuring positioner for a semi-automatic cutting line.

Technical data

Cutting diagram

Technical specifications Cutting unit

Blade diameter

600 mm

Blade rotation speed

3000 rpm

Blade motor power

kW 9 (HP 12,5)

Blade driving

Two-handed starting system

Working table height

945 mm

Workpiece loading

Side

Max operating pressure

6-8 bar

Extraction outlets

3 x Ø100 mm

Net weight

570 kg

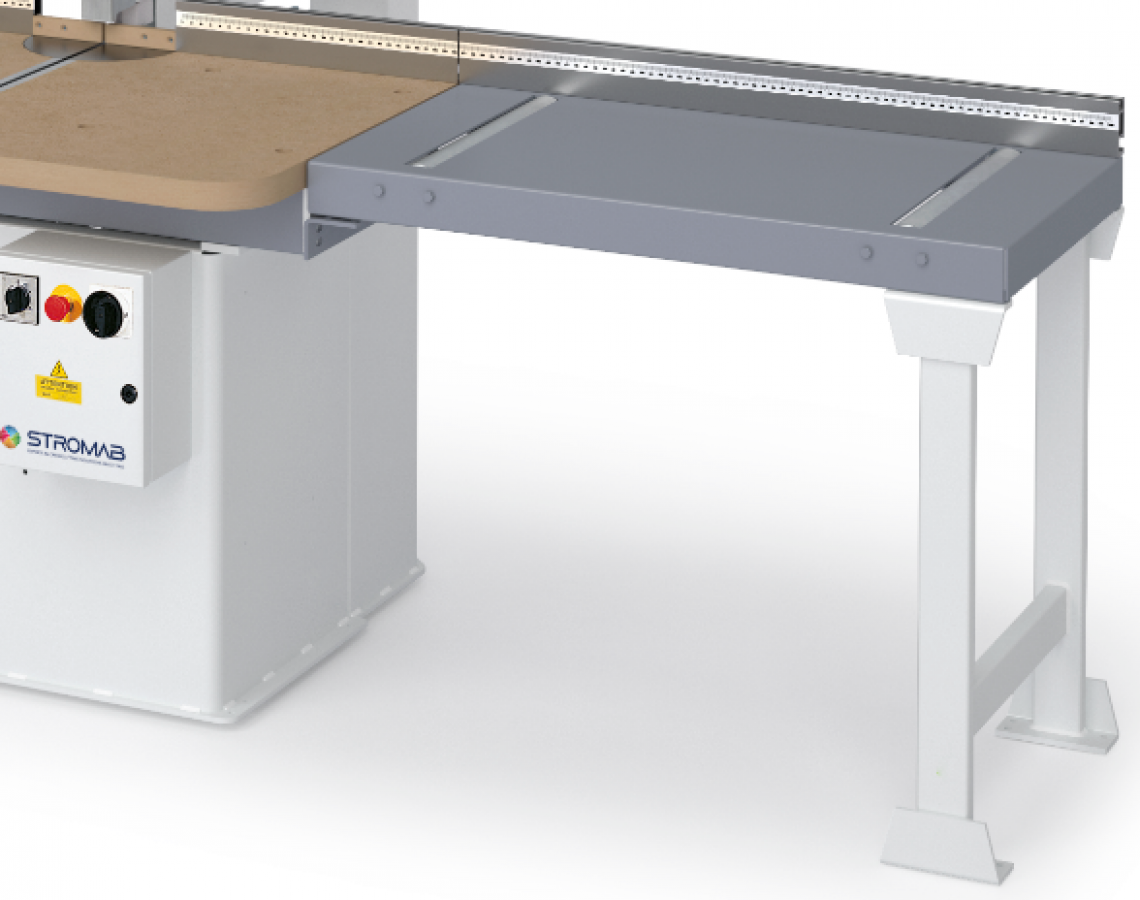

ROLLERS TABLE (Rollers Ø 90mm)

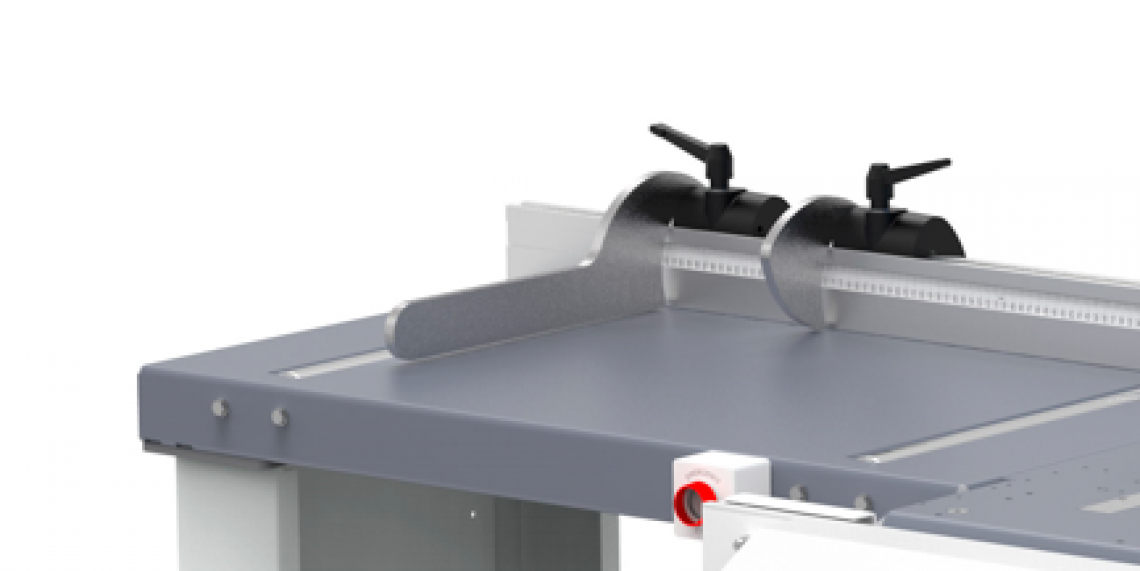

MANUAL SIDE STOP (60 mm / 250 mm)

the options that make the difference

CROSSCUT SAW WITH ASCENDING BLADE

STROMAB STOP

find out

applications for this product

discover the applications for this product

Wooden Packaging

more details
