TR 501

products / CROSSCUT SAW WITH ASCENDING BLADE

Product Description

CUT OFF SAWS WITH ASCENDING BLADE

CLASSIC TOOLS FOR SAWING

TR501 is a cut off saw that was born out to meet the crosscutting needs of small and large industries.
Thanks to a pneumatic saw unit drive with bimanual hand-saving control, a motor power of 9 kW

and a 500 mm diameter blade it can cut up to 135 mm thick and 360 mm wide.
Possibility of integrating the STROMAB STOP automatic measuring positioner for a semi-automatic cutting line.

Technical data

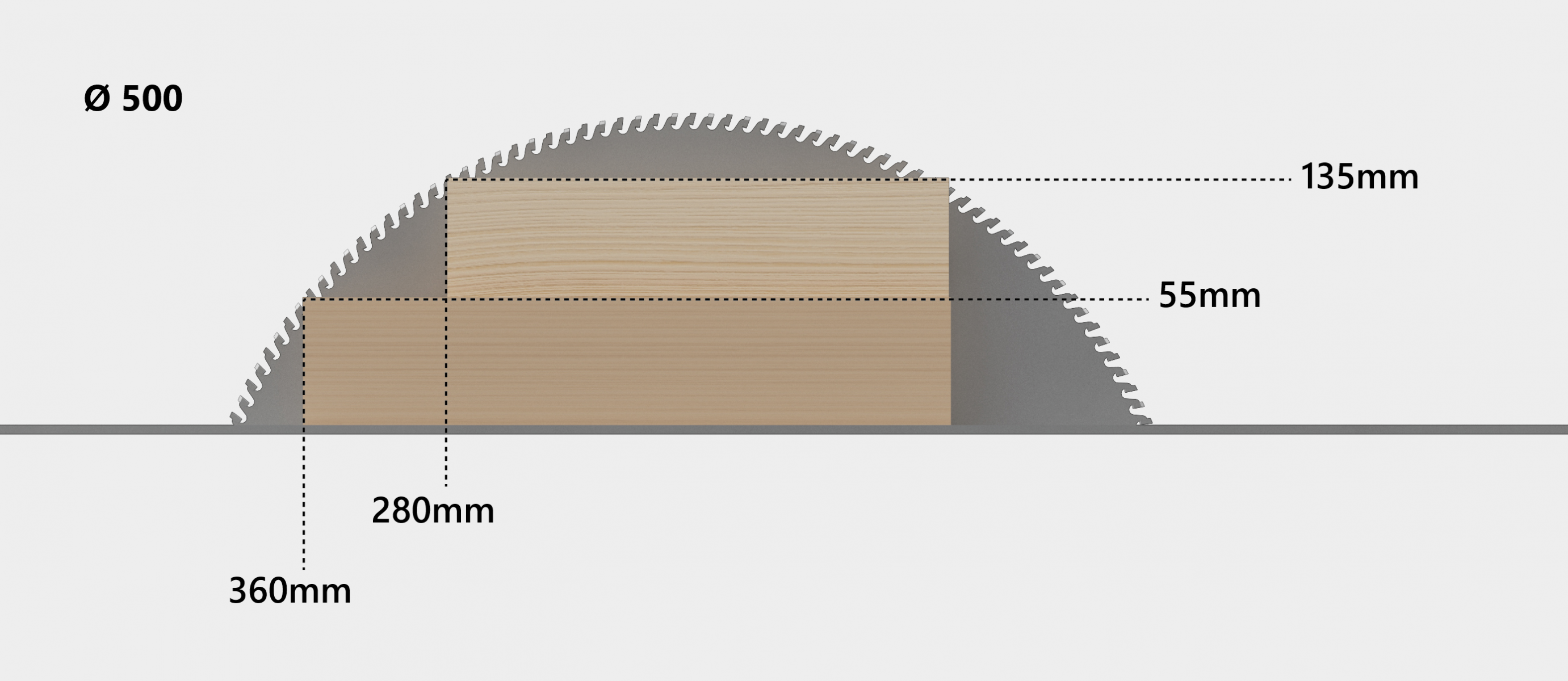

Cutting diagram

Technical specifications Cutting unit

Blade diameter

500 mm

Blade rotation speed

3000 rpm

Blade motor power

kW 7,5 (HP 10)

Blade driving

Two-handed starting system

Working table height

895 mm

Workpiece loading

Front and Side

Max operating pressure

6-8 bar

Extraction outlets

2 x Ø100 mm

Net weight

500 kg

ROLLERS TABLE (Rollers Ø 60mm)

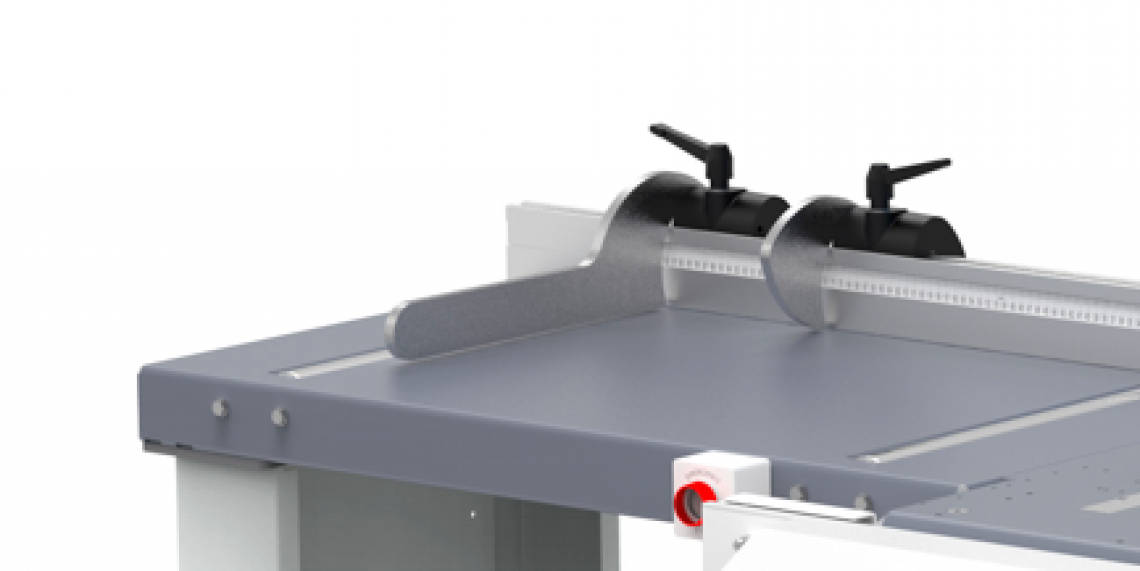

MANUAL SIDE STOP (60 mm / 250 mm)

the options that make the difference

CROSSCUT SAW WITH ASCENDING BLADE

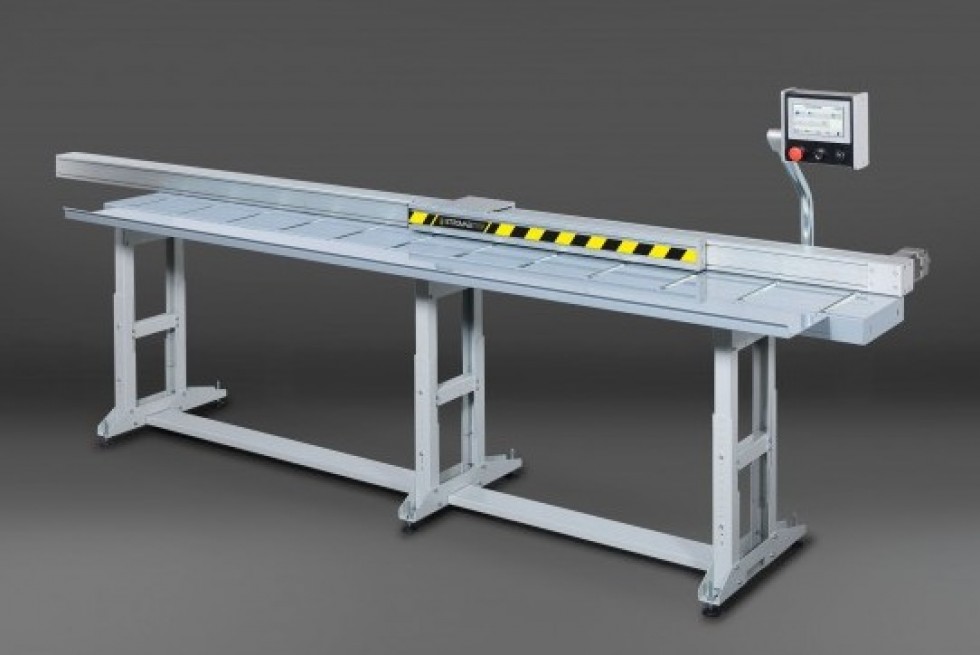

STROMAB STOP

find out

applications for this product

discover the applications for this product

Floors, Doors and Windows

more details
