TR 350

products / CROSSCUT SAW WITH ASCENDING BLADE play video

Product Description

CUT OFF SAWS WITH ASCENDING BLADE
CLASSIC TOOLS FOR SAWING

TR350 is a cut off saw that was born out to meet the crosscutting needs of small and large industries.
Thanks to a pneumatic saw unit drive with bimanual hand-saving control, a motor power of 3 kW
and a 350 mm diameter blade it can cut up to 80 mm thick and 210 mm wide.
Possibility of integrating the STROMAB STOP automatic measuring positioner for a semi-automatic cutting line.


Technical data


Blade diameter
350 mm
Blade rotation speed
3000 rpm
Blade motor power
kW 3 (HP 4) triphase

Max cutting capacity
210 mm (W) at 30 mm (H)
80 mm (H) at 150 mm (W)

Operating pressure
6-8 bar

Extracion outlets
2 x Ø100 mm

Boards loading
from side

Net weight
160 kg
Technical data arrow_drop_up

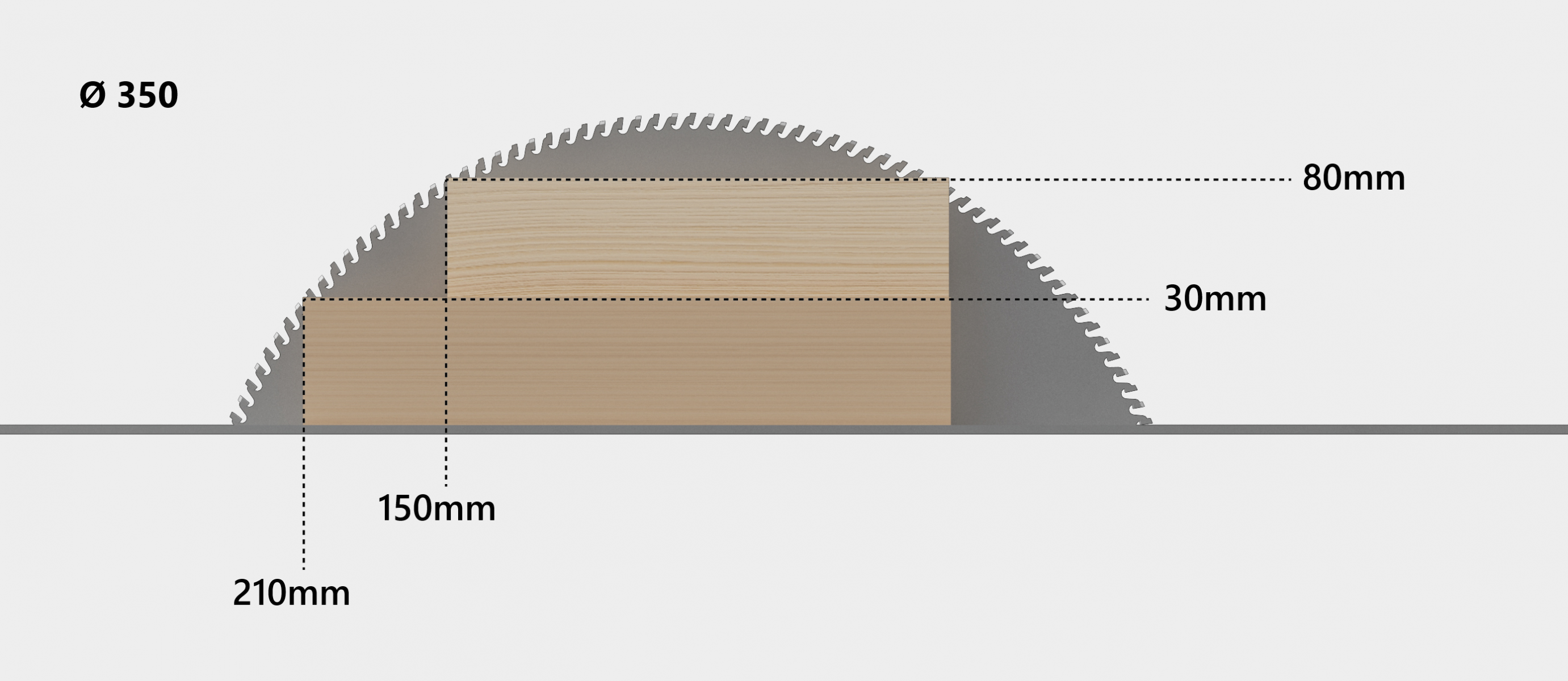

Cutting diagram
Technical specifications Cutting unit
Blade diameter
350 mm
Blade rotation speed
3000 rpm
Blade motor power
kW 3 (HP 4)
Blade driving
Two-handed starting system
Working table height
885 mm
Workpiece loading
Side
Max operating pressure
6-8 bar
Extraction outlets
2 x Ø80 mm
Net weight
160 kg

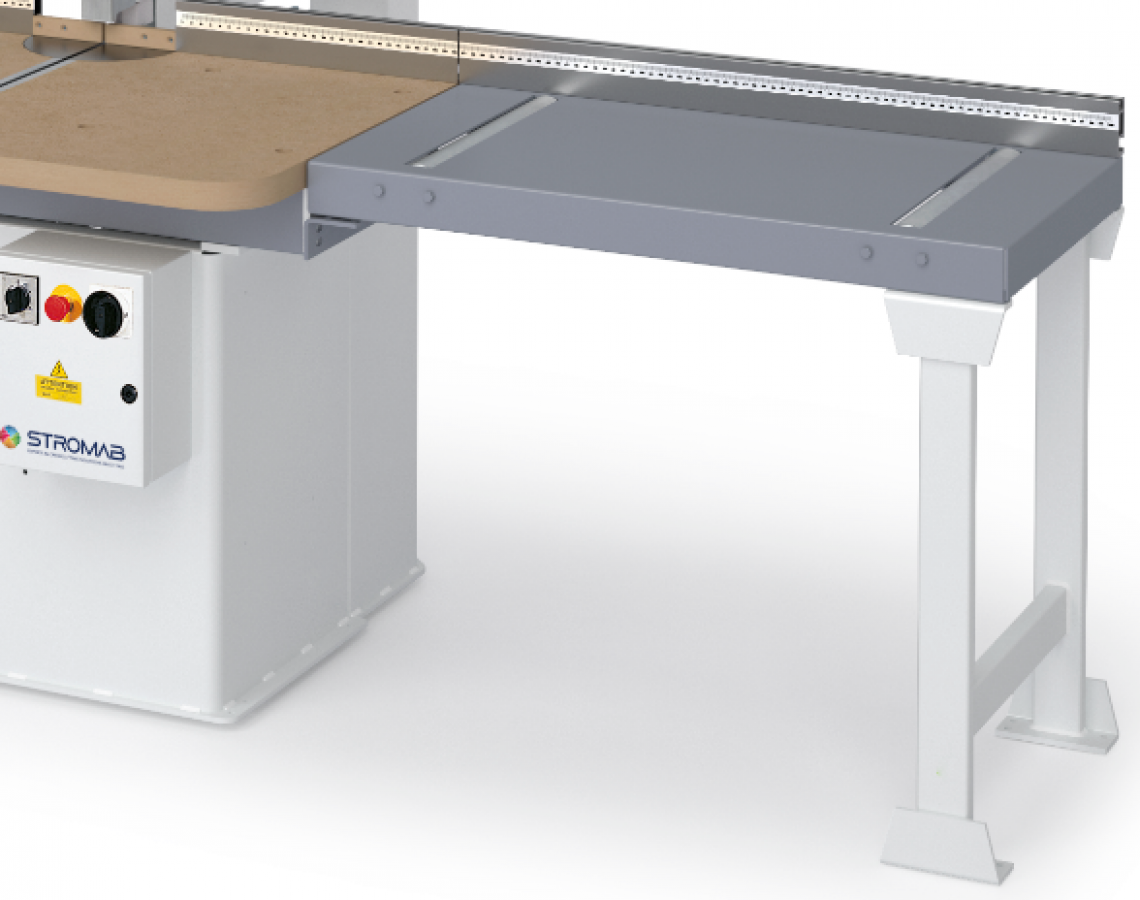

ROLLERS TABLE (Rollers Ø 32mm)

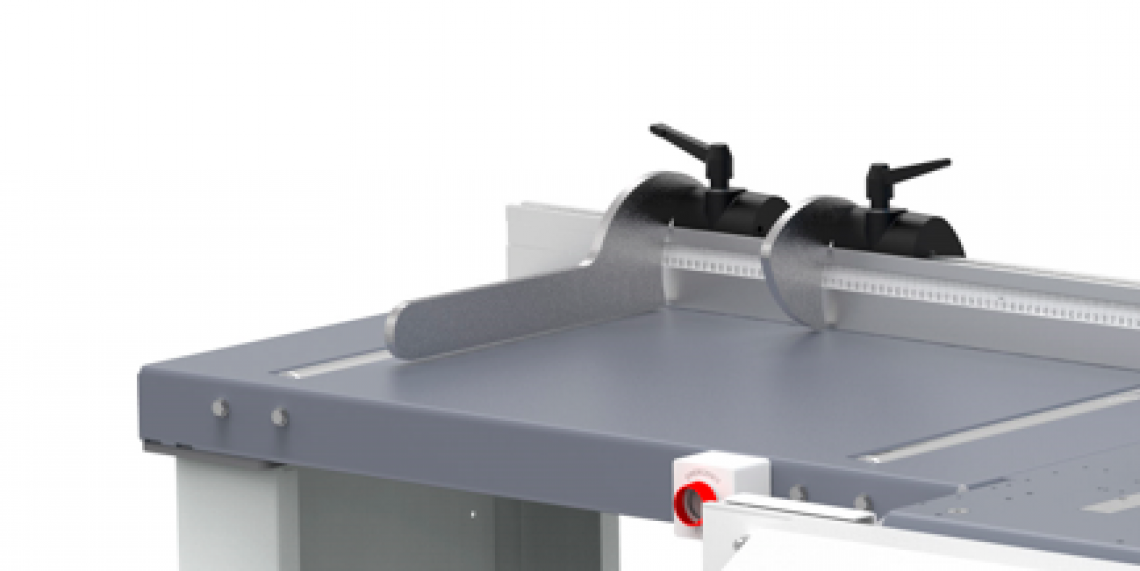

MANUAL SIDE STOP (60 mm)
