TR601 MXA - TR601F MXA

products / OPTIMIZING CROSSCUT LINES FOR STRAIGHT CUTTING play video

Product Description

CROSSCUTTING LINE WITH AUTOMATIC LOADING
OPTIMISED STACK CUTTING


The TR601 MXA is an electronically pusher-controlled cut-off line with automatic loading and complete optimisation and defection of wood.
With its specific hydraulically driven cutting unit and a powerful 9.2 kW motor, it is the ideal solution
to cut in packs using the large cutting sections of the 600 mm diameter blade, precisely and quickly.
Thanks to increasingly ambitious technical choices, the electronic pusher runs on a linear guide and high-performance skids.
The feed system via rack, pinion and brushless motor guarantees the pushing of a pack of up to 750 kg.

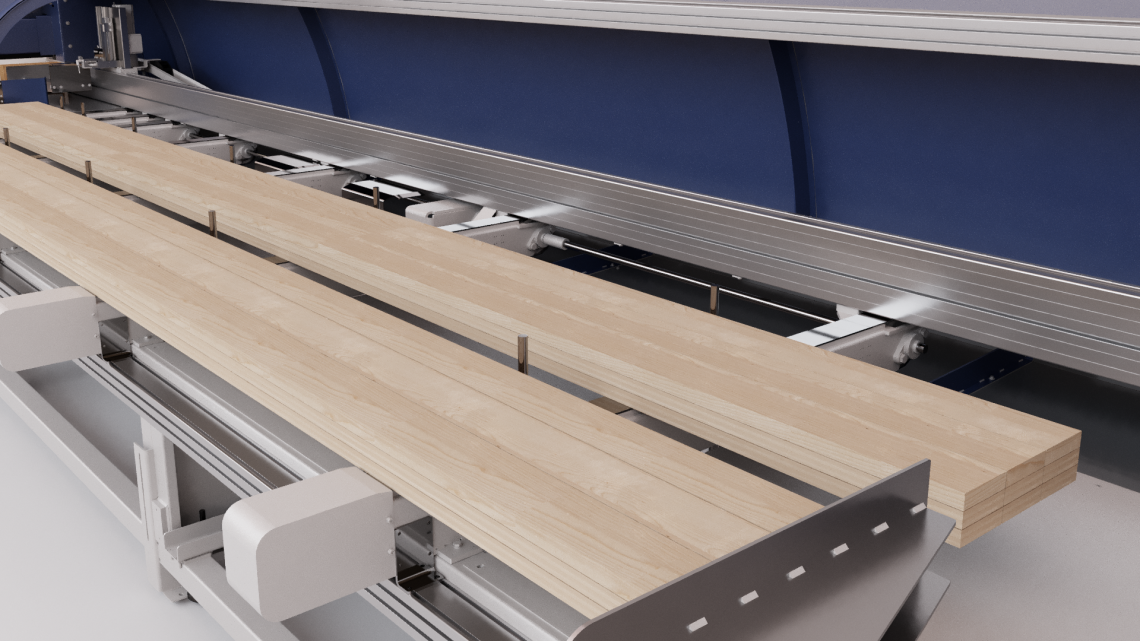

Automatic loading takes place via 1450 mm conveyor belts and acts as a buffer for the most demanding operator.
The software architecture relies on a Beckhoff electronic control with a high-resolution 12’ touch-screen monitor,
simple and intuitive 3D graphic interface with Windows operating system.
Cutting lists can be created directly on the on-board software or imported via connection
to Ethernet or USB network ports.
The software allows the cutting list to be automatically optimised to reduce waste and optimise the machining process
according to 4 criteria: maximum length, minimum waste, sequence and priority.
A photocell allows automatic measurement of the workpiece to be cut (OPTI function).
A second photocell detects fluorescent marks for eliminating knots and defects (OPTI PLUS function).

TR601F MXA integrates the notching unit on the machine, turning it into a true machining centre combining cutting and milling.

Label and inkjet printers can be integrated into the cutting line.
On request, it is possible to implement an automatic single-bar unloading system designed for unloading stack material.
The unloader is also available with a trapdoor for the evacuation of end trim and tail trim.


Cut-off saw technical data

Diametro lama
600 mm

Velocità rotazione lama
2600 rpm

Potenza motore lama
kW 9,2 (HP 12,5)
Sezione minima di taglio
20 (L) x 10 (H) mm

Massima capacità di taglio

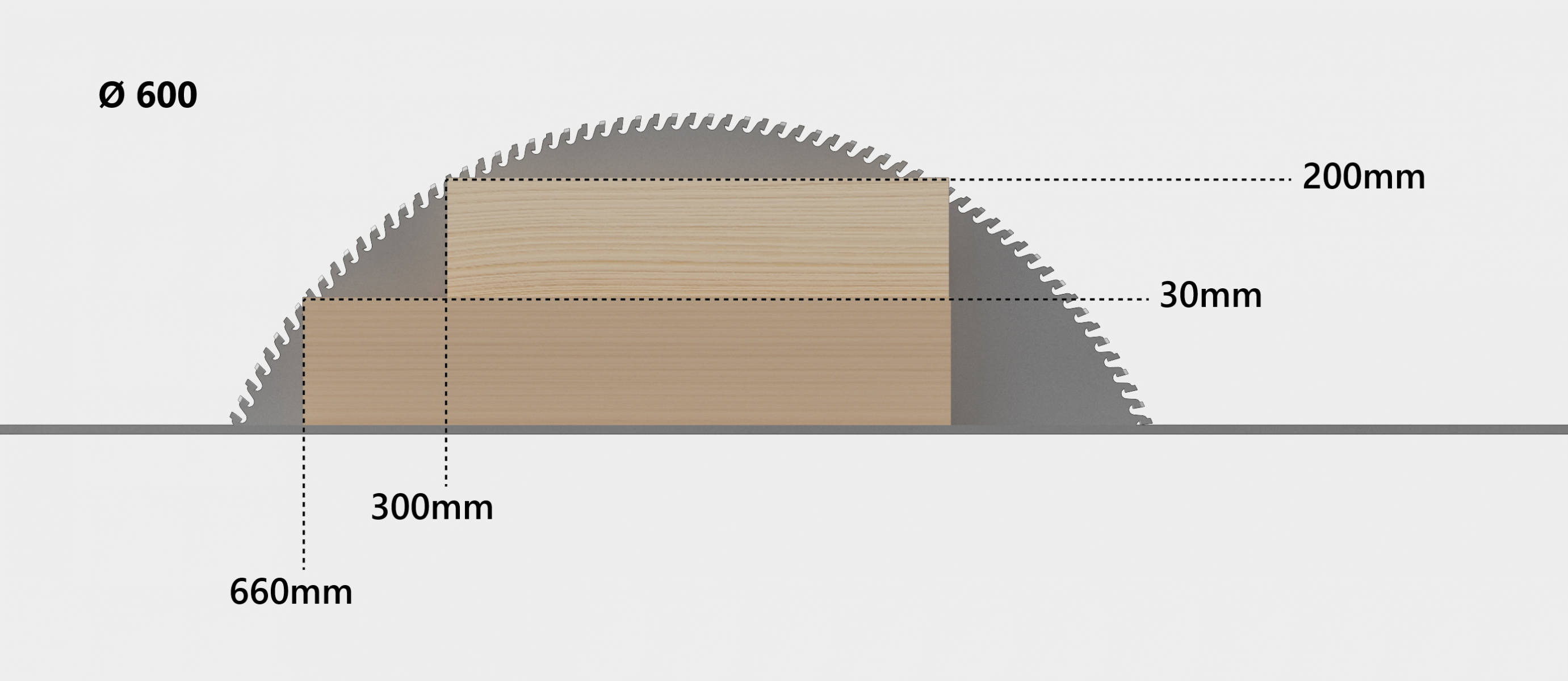

650 mm (L) a 40 mm (H) - 300 mm (L) a 200 mm (H)

Pressione massimo d'esercizio
6 bar

Bocche di aspirazione
2 x Ø100 mm

Peso netto
2100 kg


Notching unit technical data

Potenza motore
kW 4 (HP 5,5) - kW 5,5 / kW 7,5 opzionale

Diametro max fresa
280 mm (foro Ø40 mm)

Corsa di fresatura
400 mm
Larghezza max utensile di fresatura
100 mm

Regolazione manuale profondità di fresatura
da 0 a 75 mm (posizionamento controllato opzionale)

Peso netto
750 kg


Push-feed technical data

Capacità di carico
da 4000 a 14000 mm

Velocità massima dello spintore
90 mt / min

Velocità massima di posizionamento
90 mt / min
Velocità massima di ritorno
90 mt / min

Precisione di posizionamento
+/- 0,4 mm

Peso massimo delle tavole
350 kg fino a 7000 mm - 750 kg da 8000 mm

Ciclo esecuzione taglio
6 sec


ELECTRONIC PUSH-FEED

NOTCHING UNIT
