US 30 MX

products / UNIVERSAL RADIAL ARM SAWS play video

Product Description

RADIAL CARPENTRY SAWS
COMPOUND CUTTING FOR LARGE SECTIONS



US30 MX with integrated electronic stop, is designed to meet the needs of cutting large sections
in combination with blade tilting and arm rotation.
All machine movements, tilting, rotation, blade feed and electronic stop are electronically controlled.
Electronic stop positioning via precision rack and pinion, brushless motor and planetary gearbox.
The machine software has a simple and intuitive interface based on a touch screen monitor for programming
and configuration, as well as being able to directly import files in .BTL format.
Machining optimisation is performed by the machine control to reduce scrap and optimise machining processes.
Simple and intuitive process with label printer and Ethernet interface for connection to local networks and company software.


Technical data


Blade diameter
550 mm
Blade rotation speed
3000 rpm

Blade motor power
5,5 kW (7,5 HP)

Cutting speed
fino a 22 mt/min

Blade rotation (arm rotation)
-60°  +60°

Blade inclination (arm inclination)
-60°  +30°

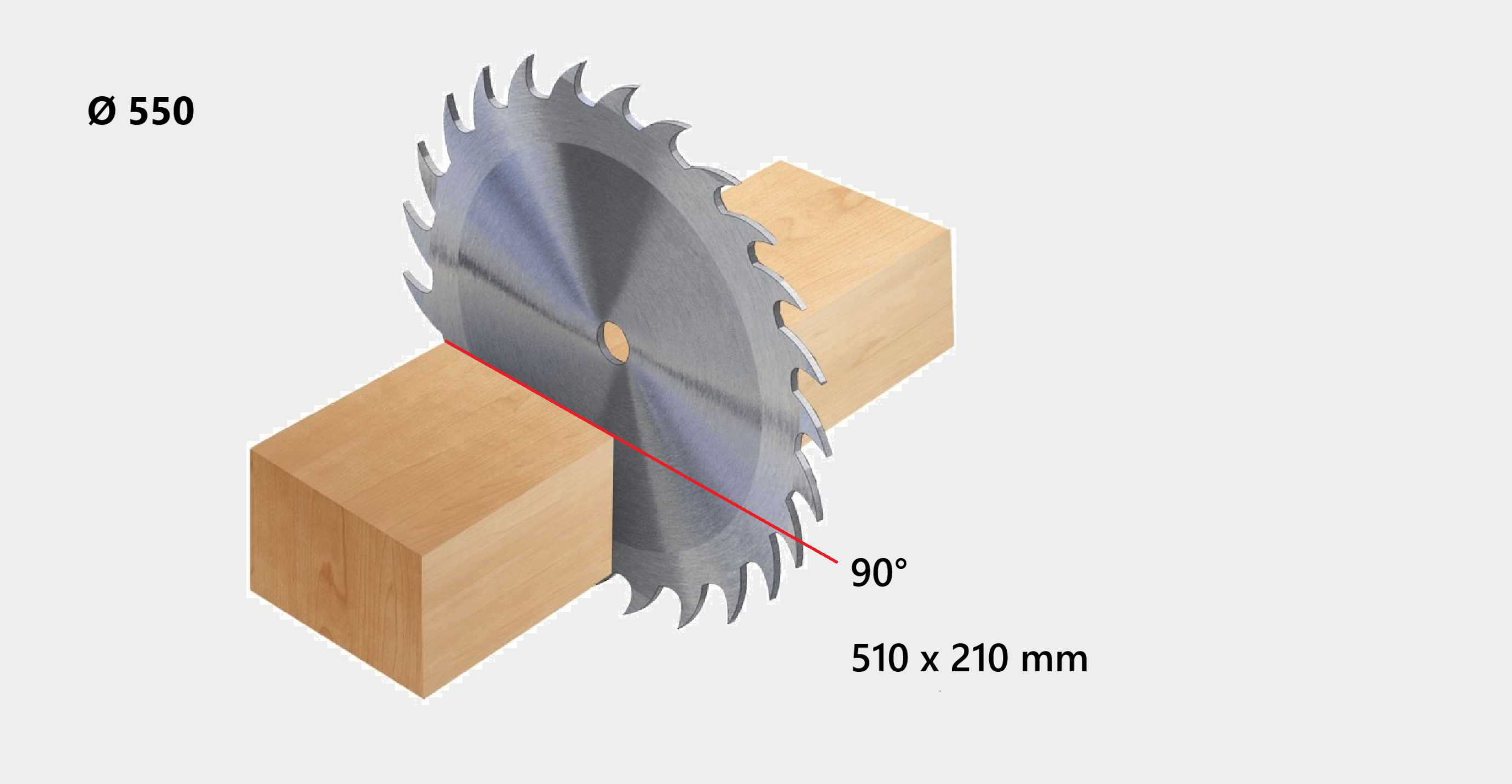

Max cutting capacity at 90°
510 mm (W) x 210 mm (H)

Electronic stop capability
from 3000 up to 14000 mm

Operating pressure
6-8 bar

Extraction outlets
3 x Ø120 mm

Net weight
1300 kg


CUTTING UNIT

Arm rotation and tilting for compound cutting

COMPOUND CUTTING
