SL1products / Clamping machines for gluing play video
Electrohydraulic clamping machine for the production of structural and non-structural plywood beams ( max. width 150 mm.). Small footprint with front loading, wide range of sizes, from 3000 mm. to 8000 mm.
Sliding vertical beams and adjustable-height timber rests. High-performance hydraulic cylinders (max. thrust 2500 kg.)
Two-lever control valve for two gluing areas with independent pressure levels. Circuit-closing valves to maintain the pressure.

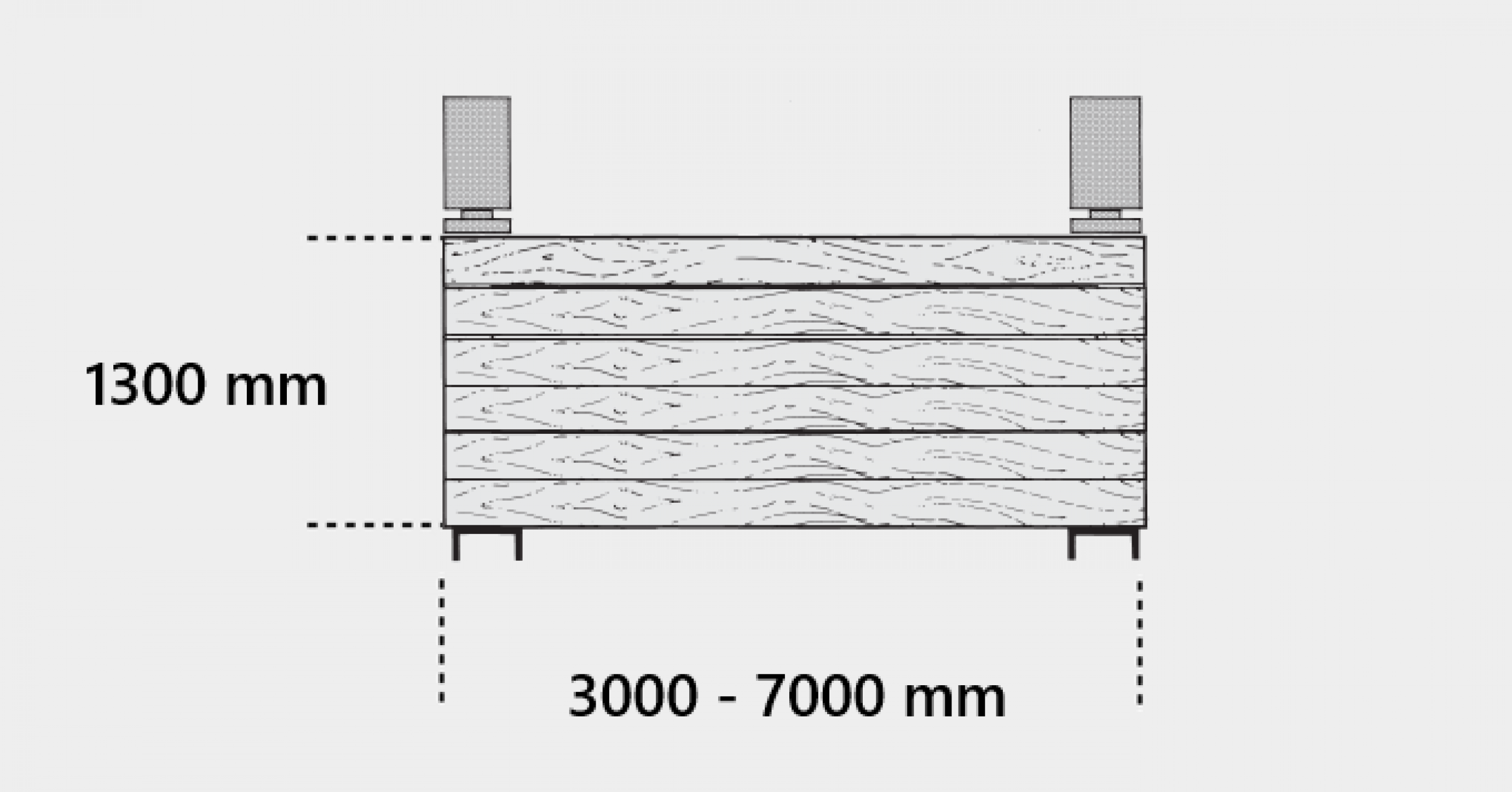

STANDARD EQUIPMENT: Single-sided with 2 sliding vertical beams for each metre of working space, 3 types of front pressure bars (optional) , Actual working lengths from 3000 to 8000 mm., Actual working height 1300 mm.
OPTIONAL EQUIPMENT: Additional vertical beams with hydraulic cylinder, Fixed front pressure bars, Sliding manual front pressure bars, Sliding pneumatic front pressure bars, Control valve with several levers, Lengths greater than 8000.
