MV 520
products / CN CUTTING CENTRES
play video
Product Description
5-AXIS CUTTING CENTRE
CUTTING TO A HIGHER LEVEL
CUTTING TO A HIGHER LEVEL

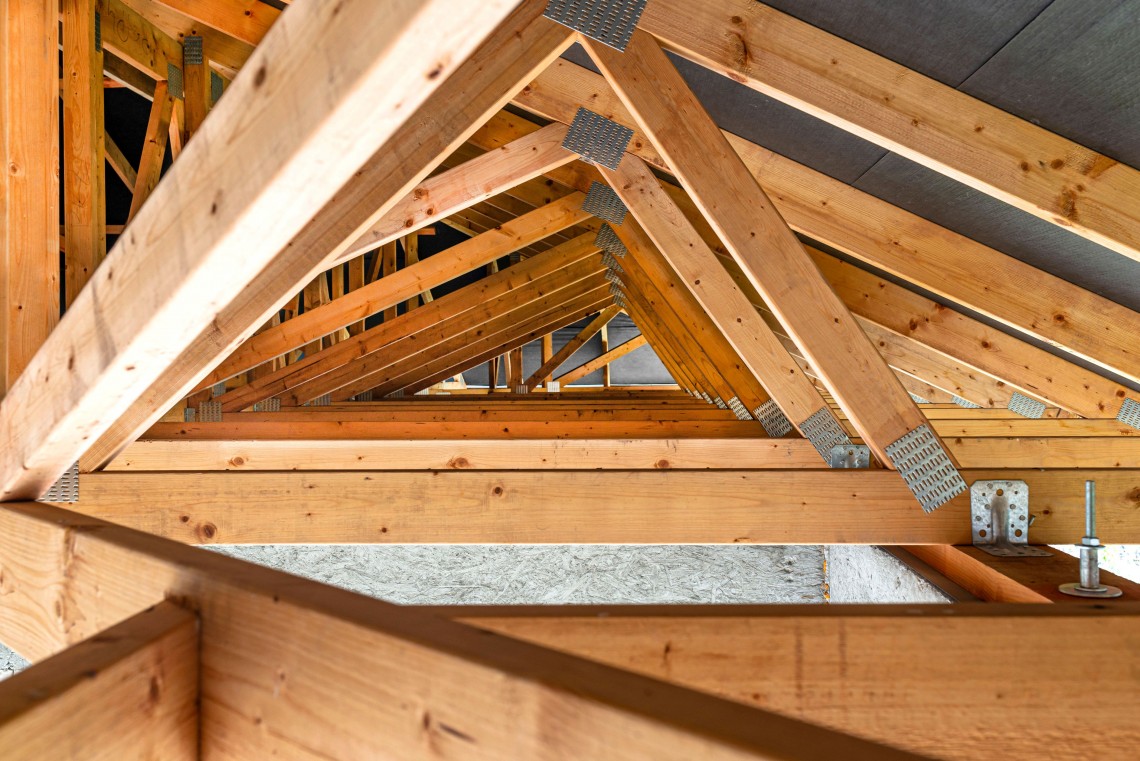

The MV 520 is the optimal solution for manufacturers of framed houses and timber truss roofs.

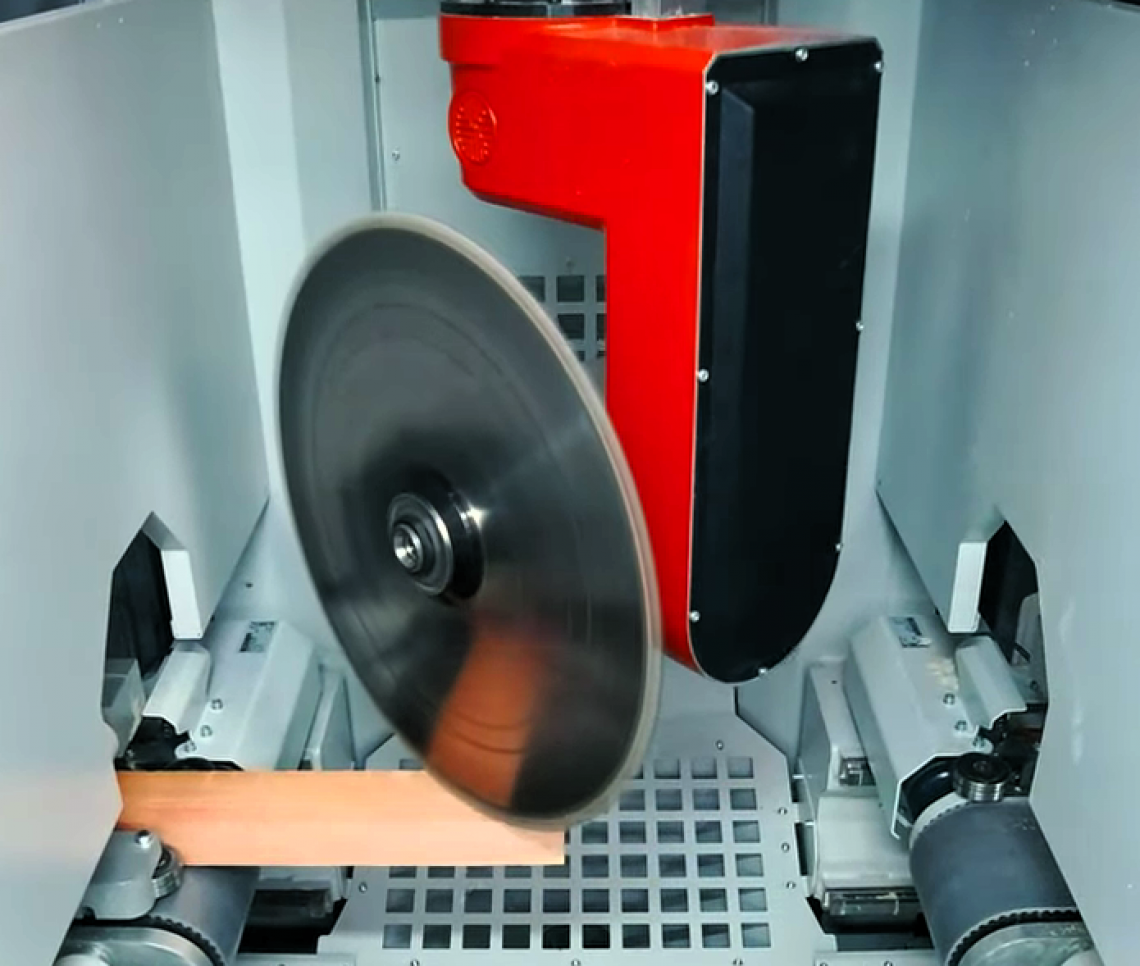

The 5-axis controlled cutting unit rotates 360° and tilts +/- 90° allowing straight, inclined and compound cuts to be made.
The boards are moved by means of 2 moving conveyor belts which in addition to moving the workpiece in both directions
move independently to guarantee maximum precision of cuts in the best machining conditions.
This handling system is patented and ensures maximum speed of the cutting cycle to maximise production
and reduce labour costs.
The software architecture is based on a Beckhoff electronic control with a high-resolution 18.5" touch-screen monitor
simple and intuitive 3D graphic interface with Windows operating system.
Thanks to the automatic import of BTL format files, the machine can be perfectly integrated into the company network
and cutting lists can be uploaded remotely or via USB port.
The high flexibility of configuration includes a version with manual loading and a version with automatic loading of boards.
Automatic sorting unit integrated as standard in the machine, includes a partially motorised roller table, a full-length ejection bar
and a front magazine for unloading all machined parts.

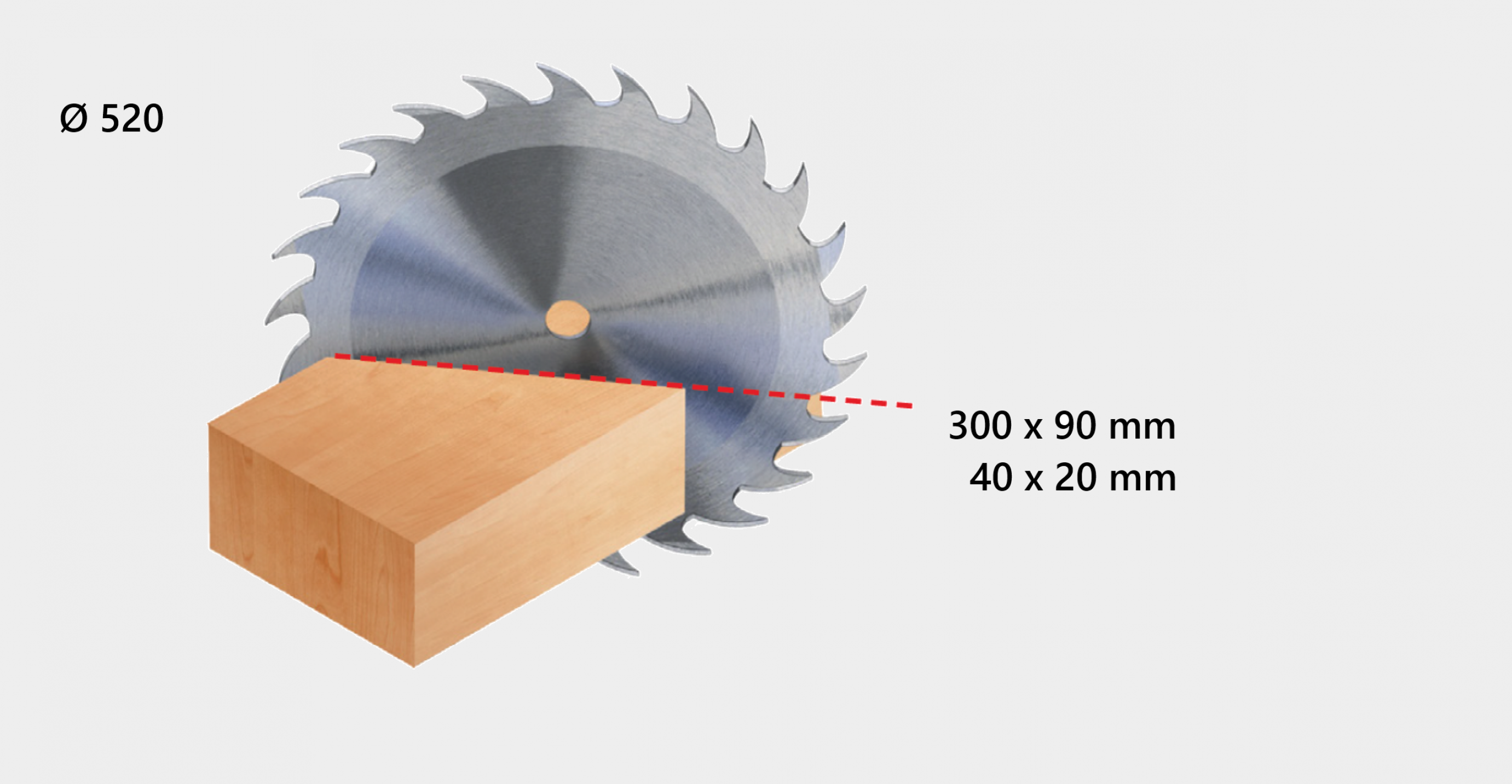

The MV520 processes wooden boards of any length with cross-sections from 40x20 mm up to 300x90 mm.
The 5-axis controlled cutting unit rotates 360° and tilts +/- 90° allowing straight, inclined and compound cuts to be made.
The boards are moved by means of 2 moving conveyor belts which in addition to moving the workpiece in both directions
move independently to guarantee maximum precision of cuts in the best machining conditions.
This handling system is patented and ensures maximum speed of the cutting cycle to maximise production
and reduce labour costs.
The software architecture is based on a Beckhoff electronic control with a high-resolution 18.5" touch-screen monitor
simple and intuitive 3D graphic interface with Windows operating system.
Thanks to the automatic import of BTL format files, the machine can be perfectly integrated into the company network
and cutting lists can be uploaded remotely or via USB port.
The high flexibility of configuration includes a version with manual loading and a version with automatic loading of boards.
Automatic sorting unit integrated as standard in the machine, includes a partially motorised roller table, a full-length ejection bar
and a front magazine for unloading all machined parts.
The MV520 processes wooden boards of any length with cross-sections from 40x20 mm up to 300x90 mm.
|
Technical Data
|
|
|
Blade diameter
520 mm
|
Blade rotation speed
3000 rpm
|
|
Blade motor power
kW 3 (HP 4) with Inverter
|
Max cutting section
300 mm (W) a 80 mm (H)
|
|
Max speed of conveyor belts (X axis)
140 mt/min
|
Loadable beam length
da 1250 mm a 6500 mm
|
|
Loading table height
930 mm
|
Max operating pressure
6-8 bar
|
|
Extraction outlets
3 x Ø120 mm
|
Net weight
2700 kg
|
CUTTING UNIT
5 electronically controlled axes

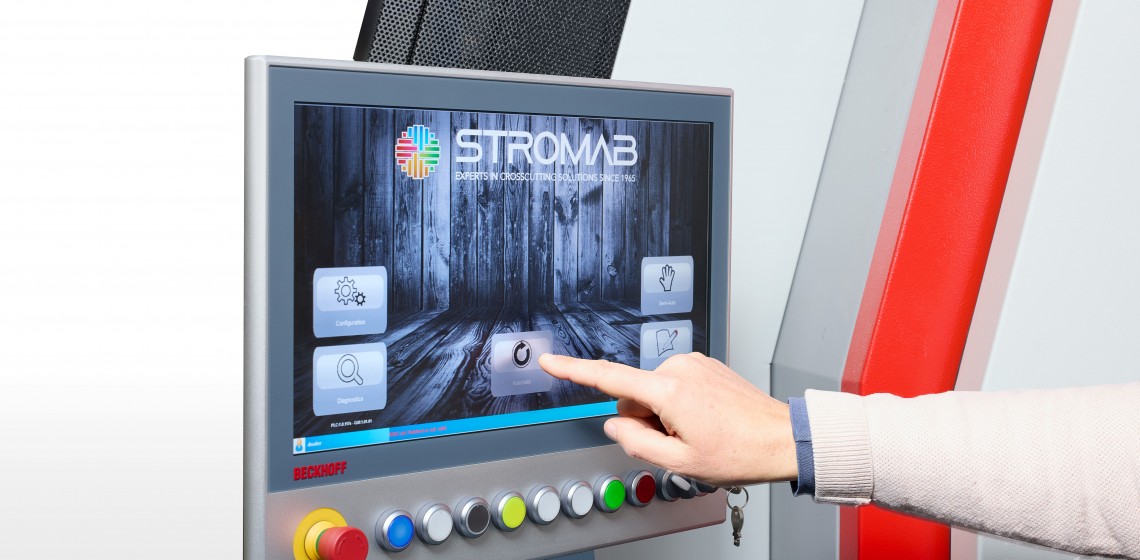

ELECTRONIC CONTROL "BECKHOFF"
18.5" touch screen control panel for man-machine interface management.
