US 30

products / UNIVERSAL RADIAL ARM SAW

Product Description

RADIAL CARPENTRY SAWS
COMPOUND CUTTING FOR LARGE SECTIONS

US30 is built to meet the needs of cutting large sections in combination with blade tilting and arm rotation.
All machine movements, tilting, rotation and blade feed are electronically controlled.
The machine software has a simple and intuitive interface based on a touch screen monitor for programming
and configuration, as well as being able to directly import files in .BTL format.
Machining optimisation is performed by the machine control to reduce scrap and optimise machining processes.
Simple and intuitive process with label printer and Ethernet interface for connection to local networks and company software.

Technical data

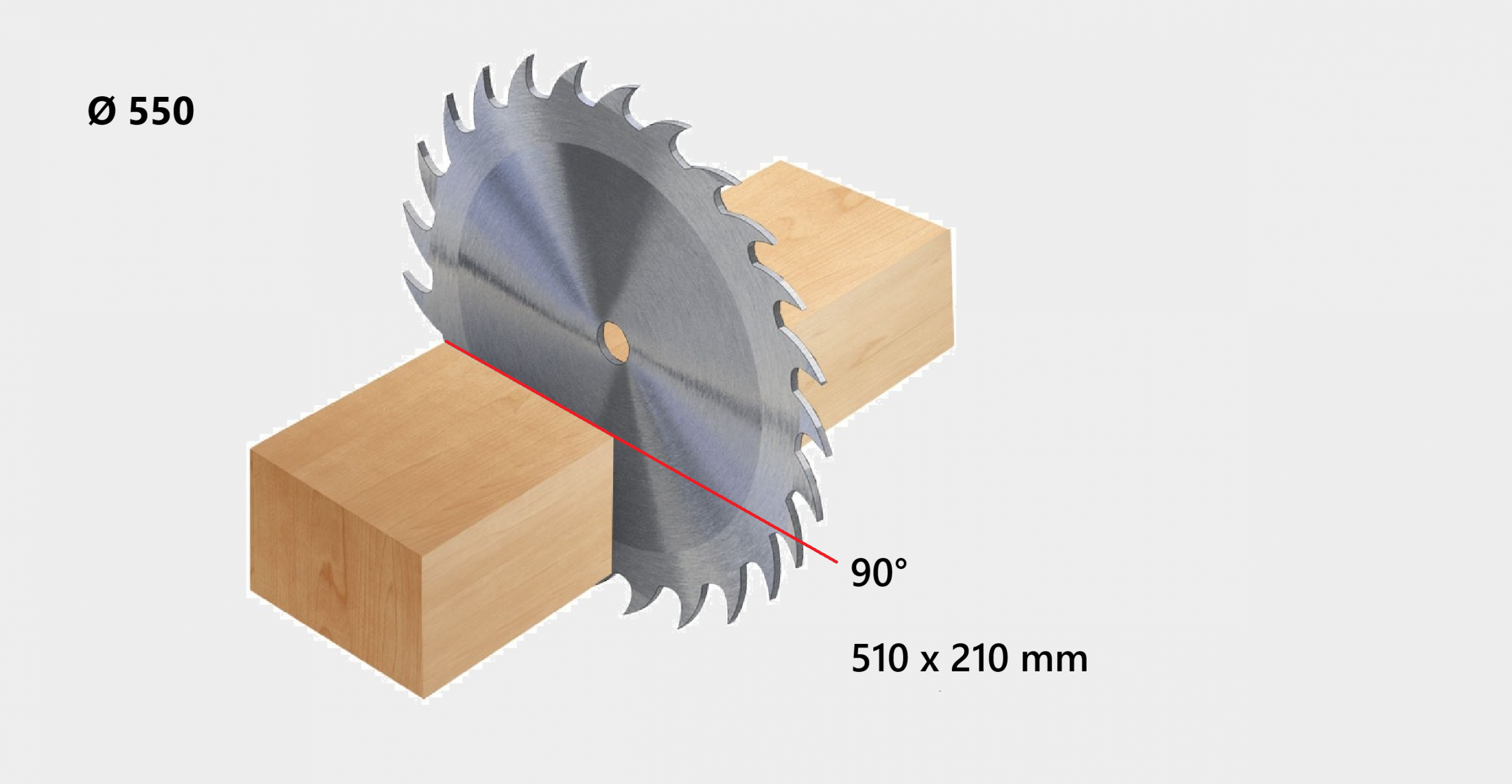

Cutting diagram

Technical specifications Cutting unit

Blade diameter

550 mm

Blade rotation speed

2800 rpm

Blade motor power

kW 5,5 (HP 7,5)

Cutting speed

upto 22 mt/min

Working table height

900 mm

Blade feeding

Semi-automatic (Two-handed starting system)

Blade inclination

-60° +30°

Blade rotation

-60° +60°

Max operating pressure

6-8 bar

Extraction outlets

3 x Ø120 mm

Net weight

1300 kg

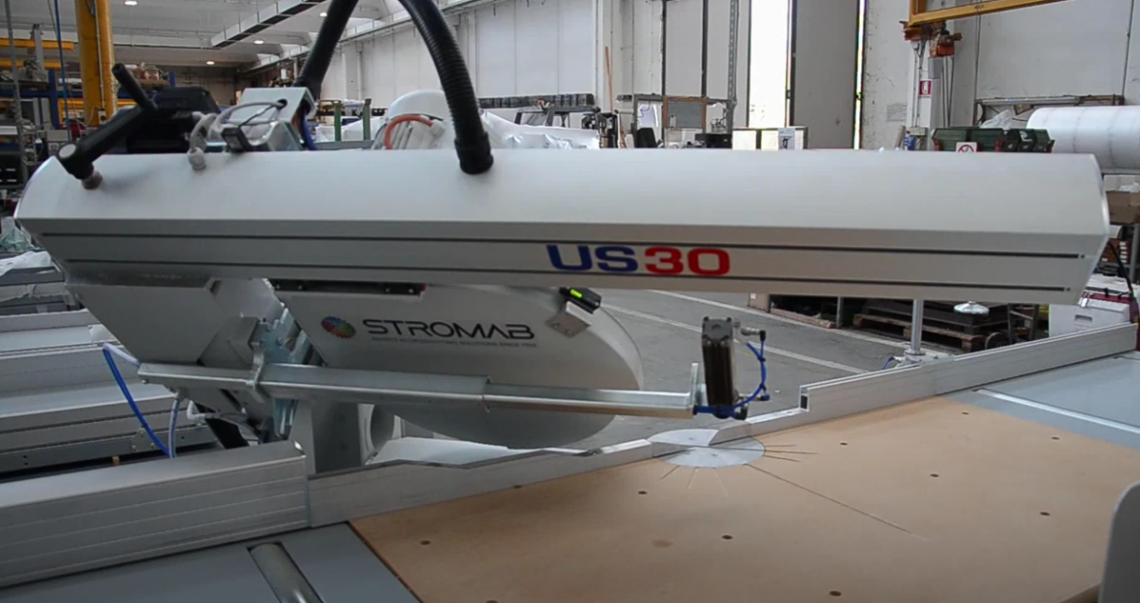

CUTTING UNIT

Arm rotation and tilting for compound cutting

COMPOUND CUT
