WS1

products / DEFECTING THROUGH-FEED CROSSCUT SAW play video

Product Description

DEFECTING THROUGH-FEED CROSSCUT SAW
EXCELENT PERFORMANCE

WS1 is a trough-feed crosscut saw born of our experience and professionalism.
Thanks to its high level of speed (120 mt/min) and precision combined with extreme ease of use
guarantees a significant contribution within the production cycle.
Compactness and reduced dimensions benefit logistics.
Entirely designed and built in Italy, it boasts excellent performance characteristics
and is the ideal tool for defecting or cutting wooden bars of any length to size.
It is mainly integrated in the glulam production cycle, in the cutting and defecting of bars
from moulding machines to feed finger joints.
Technical data arrow_drop_up

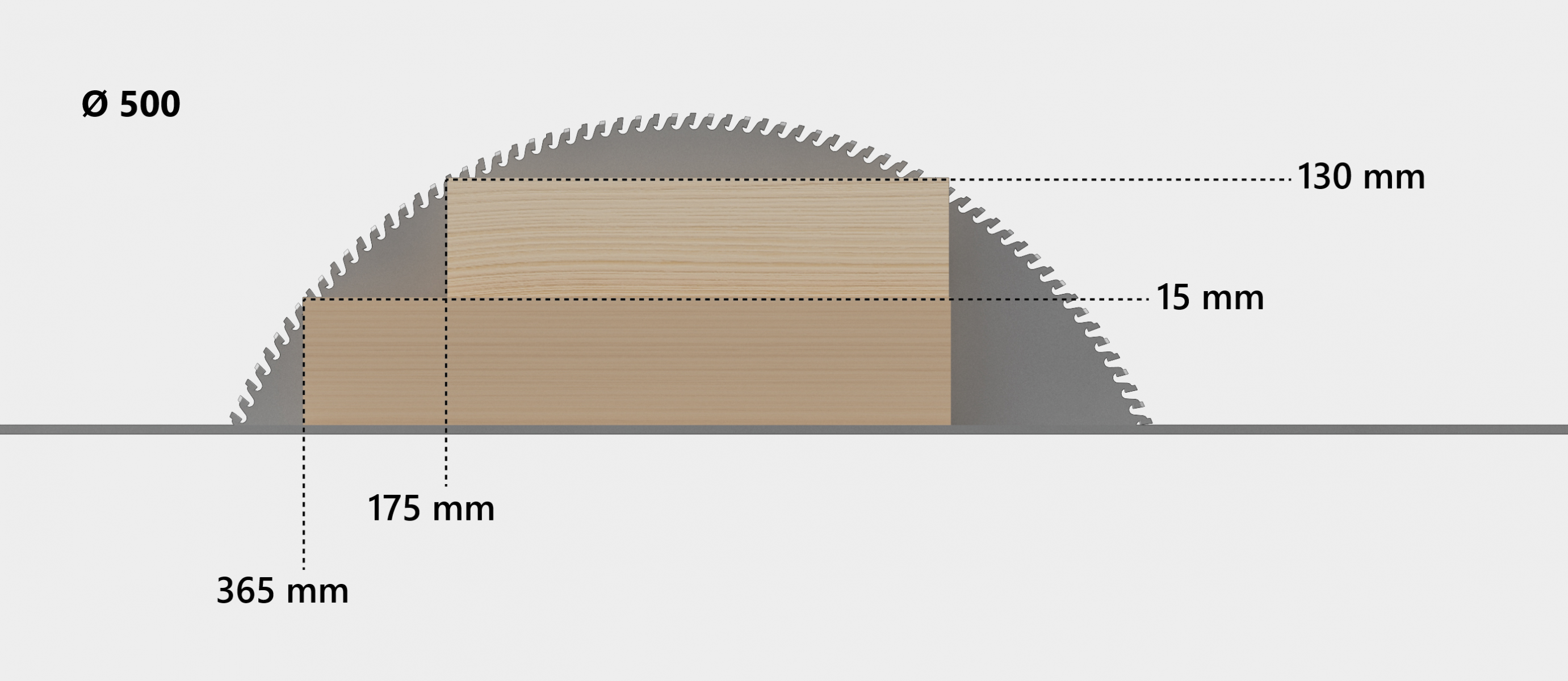

Cutting diagram

Technical specifications Cutting unit
Blade diameter
500 mm
Blade rotation speed
3500 rpm
Blade motor power
kW 7,5 (HP 10)
Blade driving
Pneumatic Automatic
Working table height
970 mm
Minimum crosscutting section
40 x 15 mm
Workpeace minimum length
550 mm
Workpiece feed speed on rollers
120 mt/min
Cuts per minute
upto 100
Workpiece loading
right side (with pre-loading station)
Max operating pressure
6-8 bar
Extraction outlets
1 x Ø200 mm
Net weight
1250 kg

7" TOUCH SCREEN OPERATOR PANEL

CUTTING AND DRIVING UNIT
